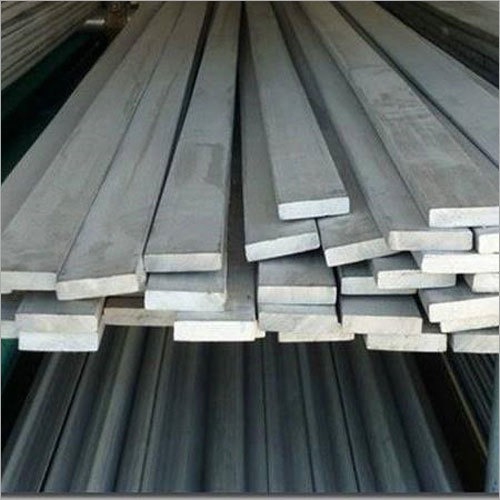

Flats Products
Flats are commonly known in India at ‘Patta’ or ‘Patti’. The same are manufactured by various small mills in India.
Common dimensions of MS Flats available in ready stock are (Special sizes of flats to be made available on order)
| DIMENSION of MS Flats – WEIGHT IN KG / METRE | ||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| WIDTH | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 | 12 | 15 | 16 | 18 | 20 | 22 | 25 | 32 |
| IN MM | ||||||||||||||||
| 12 | 0.28 | 0.38 | 0.47 | 0.56 | ||||||||||||
| 16 | 0.38 | 0.5 | 0.63 | 0.75 | ||||||||||||
| 19 | 0.47 | 0.63 | 0.79 | 0.94 | ||||||||||||
| 25 | 0.6 | 0.8 | 1 | 1.2 | 1.4 | 1.6 | 1.8 | 2 | 2.4 | |||||||
| 30 | 0.7 | 0.9 | 1.2 | 1.4 | 1.6 | 1.9 | 2 | 2.4 | 2.8 | 3.8 | ||||||
| 32 | 0.8 | 1 | 1.3 | 1.5 | 1.7 | 2 | 2.3 | 2.5 | 3 | 4 | ||||||
| 35 | 0.8 | 1.1 | 1.4 | 1.6 | 1.9 | 2.2 | 2.5 | 3.3 | 4.4 | 5 | 5.6 | |||||
| 37 / 40 | 0.9 | 1.3 | 1.6 | 1.9 | 2.2 | 2.5 | 2.8 | 3.1 | 3.8 | 4.7 | 5 | 5.6 | 6.3 | |||
| 45 | 1.1 | 1.6 | 2 | 2.4 | 2.5 | 2.8 | 3.2 | 3.5 | 4.2 | 5.3 | 5.6 | 6.4 | 7.1 | 8.8 | ||
| 50 | 1.2 | 1.7 | 2.2 | 2.6 | 2.7 | 3.1 | 3.5 | 4.3 | 7.7 | 6.5 | 6.3 | 7.1 | 7.8 | 9.8 | ||
| 55 | 1.3 | 1.9 | 2.4 | 2.8 | 3 | 3.5 | 3.9 | 4.3 | 5.2 | 7.1 | 6.9 | 7.8 | 8.6 | 10.8 | ||
| 60 | 1.4 | – | – | 3 | 3.3 | 3.8 | 4.2 | 4.7 | 5.6 | – | 7.5 | 8.5 | 9.4 | 11.8 | ||
| 63 | – | – | – | 3 | 3.4 | 4 | 4.6 | 4.9 | 5.9 | 7.6 | 7.9 | 8.9 | 9.9 | 12.4 | 15.8 | |
| 65 | – | – | – | 3.1 | 3.6 | 4.1 | 4.9 | 5.1 | 6.1 | – | 8.2 | 9.2 | 10.2 | 12.8 | 16.3 | |
| 70 | – | – | – | 3.3 | – | 4.4 | 5.3 | 5.5 | 6.6 | – | 8.8 | 9.9 | 11 | 13.7 | 17.6 | |
| 75 | – | – | – | 3.5 | – | 4.7 | – | 5.9 | 7.1 | – | 9.4 | 1.6 | 11.8 | 12.9 | 14.7 | 18.8 |
| 80 | – | – | – | 3.8 | – | 5 | – | 6.3 | 7.5 | – | 10 | 11.3 | 12.6 | 13.8 | 15.7 | 20.1 |
| 90 | – | – | – | 4.2 | – | 5.7 | – | 7.1 | 8.5 | – | 11.3 | 12.7 | 14.1 | 14.7 | 17.7 | 22.6 |
| 100 | – | – | – | 4.7 | – | 6.3 | – | 7.8 | 9.4 | – | 12.6 | 14.1 | 15.7 | 17.3 | 19.6 | 25.1 |
| 110 | – | – | – | 5.2 | – | 6.9 | – | 8.6 | 10.4 | – | 13.8 | 15.5 | 17.3 | 19 | 21.6 | 27.6 |
| 120 | – | – | – | 5.7 | – | 7.5 | – | 9.4 | 11.3 | – | 15.1 | 17 | 18.8 | 20.7 | 23.6 | 30.1 |
| 125 | – | – | – | 5.9 | – | 7.8 | – | 9.8 | 11.8 | – | 15.7 | 17.7 | 19.6 | 21.6 | 24.5 | 31.4 |
| 130 | – | – | – | – | – | – | – | 10.2 | 12.2 | – | 16.3 | 18.4 | 2.4 | – | 25.5 | 32.7 |
| 140 | – | – | – | – | – | – | – | 11 | 13.2 | – | 17.6 | 19.8 | 22 | – | 27.5 | 35.2 |
| 150 | – | – | – | – | – | – | – | 11.8 | 14.1 | – | 18.8 | 21.2 | 23.6 | – | 29.5 | 37.7 |
| 160 | – | – | – | – | – | – | – | 12.6 | 15.1 | – | 20.1 | 22.6 | 25.1 | – | 31.4 | 43.2 |
