Channels

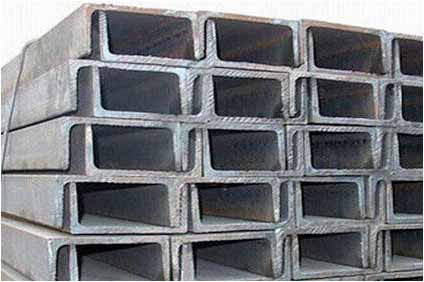

MS Channels are used in various construction, engineering and fabrication activities. ISMC are available in Mild Steel Grades and High Tensile Grade commonly used as HT Steel Grade as per Indian & International Specifications. Common Grade is IS 2062/2006.
Make : SAIL, VIZAG, JSPL, Raipur Rolling , MSP RAIGARH
Common dimensions of MS Channels available in ready stock are:
| Sr.No. | Deccription | Size | Section weight (KG/Mtrs) |
|---|---|---|---|
| 1 | ISMC 75 | 75 X 40 X 4.8 | 7.14 |
| 2 | ISMC 100 | 100 X 50 X 5 | 9.56 |
| 3 | ISMC 125 | 125 X 65 X 5.3 | 13.10 |
| 4 | ISMC 150 | 150 X 75 X 5.7 | 16.8 |
| 5 | ISMC 200 | 200 X 75 X 6.2 | 22.3 |
| 6 | ISMC 250 | 250 X 82 X 9 | 34.2 |
| 7 | ISMC 300 | 300 X 90 X 7.8 | 36.3 |
| 8 | ISMC 400 | 400 X 100 X 8.8 | 50.1 |
The standard supply length is 6mtr & 10 to 13 mtr. Specific length can also be supplied as per customer’s demand.
Channels
| Depth | Tolerance. | Width of flange | Tolerance |
|---|---|---|---|
| Up to 200 mm | ±2.5 mm | Up to 100 mm | ±2 mm |
| > 200 to 400 mm | ±3.0 mm |
Tolerance on weight per metre shall be ± 2.5% or alternatively +4, -1% of the standard weight per metre up to 200 mm depth. The permissible limits for camber and sweep shall be 0.2% of the length.
